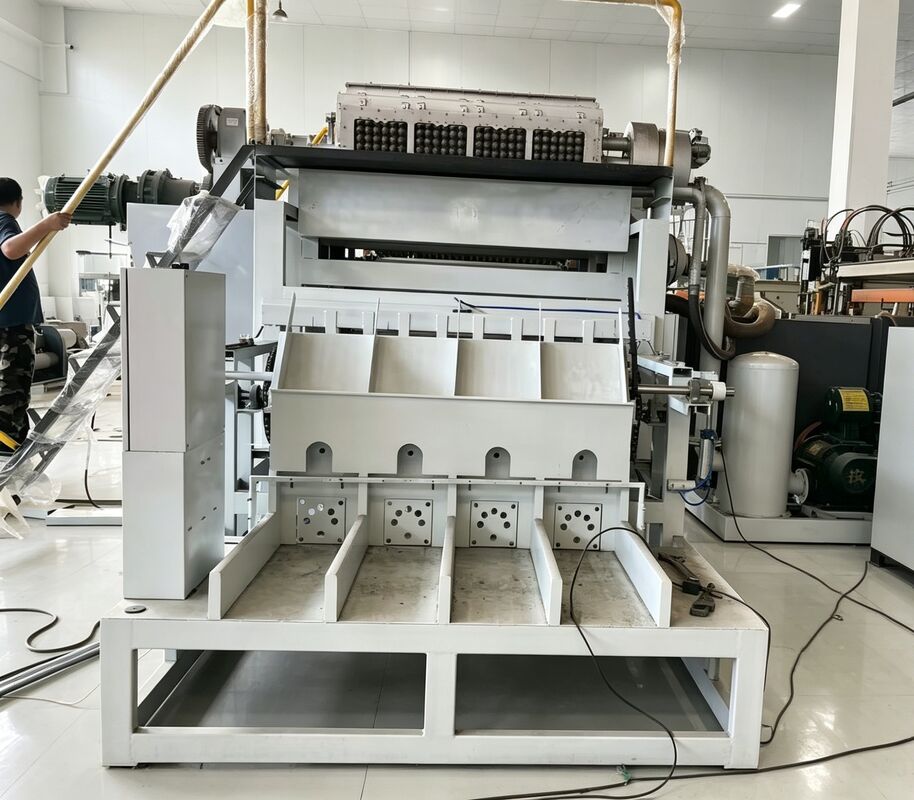

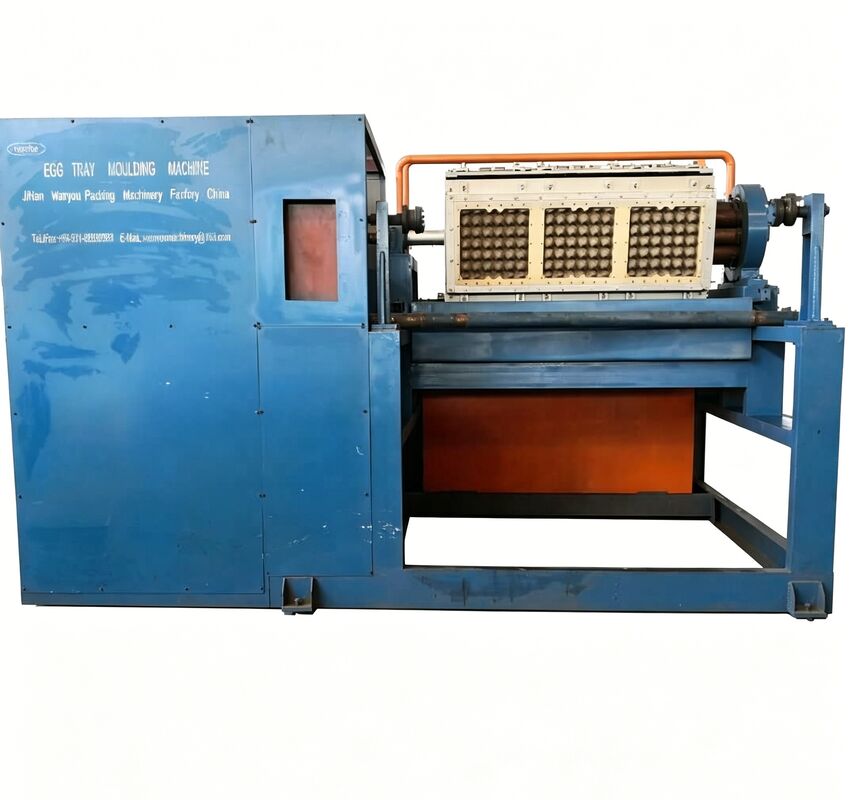

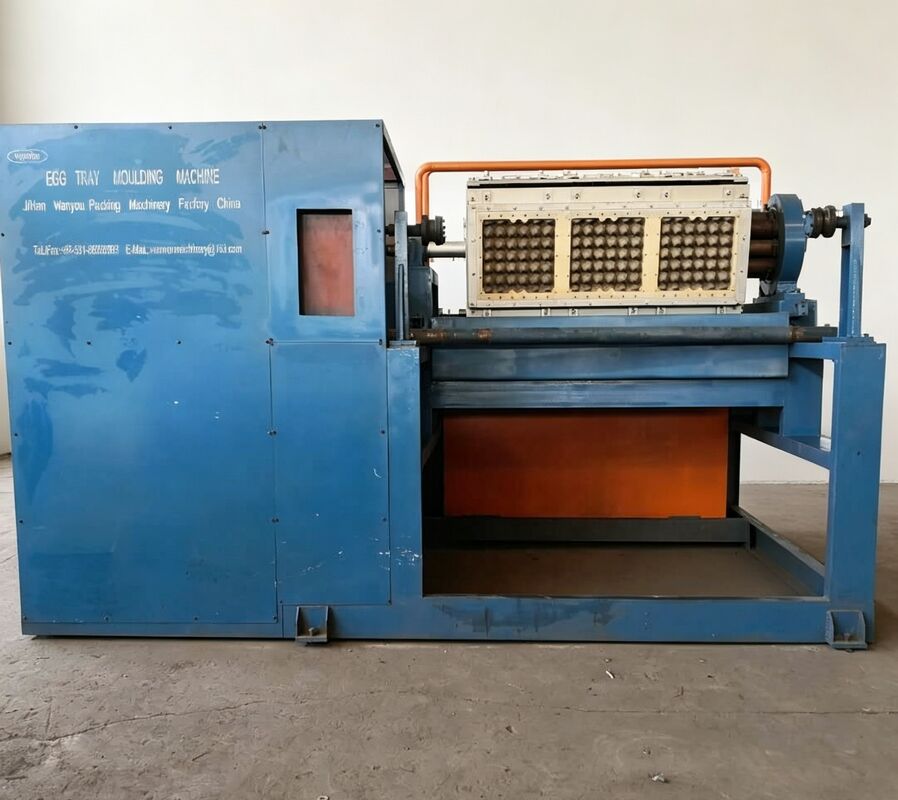

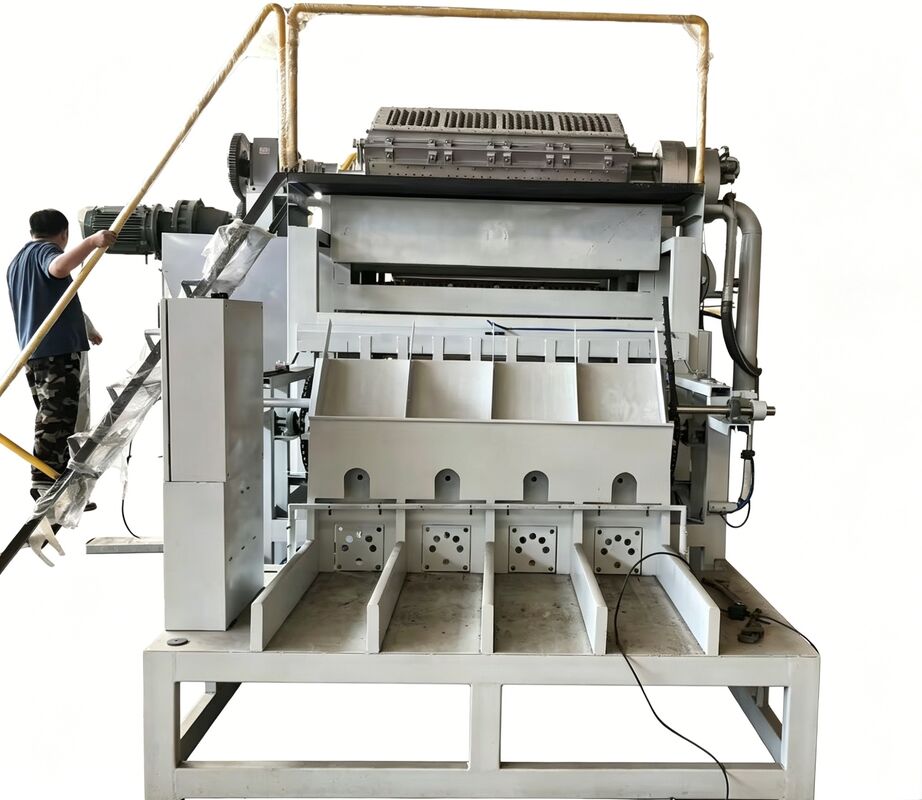

WANYOU WY-R1 Rotary Egg Tray Forming Machine 2000-2500 pcs/h Recycled Paper Pulp Molding for Mexican Poultry Farm

WANYOU WY-R1 Rotary Egg Tray Forming Machine 2000-2500 pcs/h Recycled Paper Pulp Molding for Mexican Poultry Farm

Rotary egg tray forming machine

Recycled paper pulp egg tray machine

Egg tray machine for poultry farm

起源の場所:

ジナン、シャンドン、中国

ブランド名:

Wanyou

証明:

CE, ISO 9001:2015

モデル番号:

WY-R1

連絡 ください
引金 を 求め て ください
製品詳細
マシンタイプ:
ロータリードラム卵皿成形機 WY-R1
生産能力:
1時間あたり2000~2500個
制御システム:
PLC 自動タッチスクリーンパネル付き
成形方法:
真空吸着回転ドラム連続成形
脱型方法:
自動空気圧脱型
総電力:
45KW
原材料:
古紙、再生紙パック、新聞紙、クラフト紙スクラップ
紙の消費:
150-170kg/時
金型構成:
交換可能なインサートを備えた 3x4 ロータリーモールド
完成品:
卵トレイ、卵パック、フルーツトレイ、コーヒーカップホルダー、工業用紙トレイ
動作速度:
1 分あたり 18 ~ 25 の成形サイクル
連続的な働き:
24時間無停止運転をサポート
応用産業:
農場、包装、食品、工業用
ハイライト:

Rotary egg tray forming machine

,

Recycled paper pulp egg tray machine

,

Egg tray machine for poultry farm

支払いと配送条件
最小注文数量
1セット
価格
USD 16,500 / Set
パッケージの詳細
防湿包装とスチールフレーム固定を備えた輸出グレードのコンテナ
受渡し時間
デポジット支払い後65営業日
支払条件
T/T、L/C、ウェスタンユニオン、マネーグラム
供給の能力
毎月10セット
製品説明

WANYOU WY-R1 Rotary Egg Tray Forming Machine — Built for Mexican Poultry and Packaging Producers

The WANYOU WY-R1 represents the next generation of automatic pulp molding technology, specifically configured for Mexican businesses seeking reliable and cost-effective egg tray production. As an ideal equipment choice for Latin America packaging manufacturers, this machine combines robust engineering with user-friendly PLC automation to deliver consistent output with minimal operator intervention.

Why Mexican Producers Choose the WANYOU WY-R1

In today's competitive Latin America packaging market, Mexican poultry farms and packaging workshops need equipment that balances affordability with industrial-grade reliability. The WY-R1 addresses this directly: it transforms locally available waste paper and recycled cartons into high-quality biodegradable egg trays at 2000-2500 pieces per hour while keeping energy consumption to a manageable 45KW and requiring only 4-5 workers for full operation.

Technical Specifications

ParameterSpecification
ModelWANYOU WY-R1
Production Capacity2000-2500 pieces per hour
Control SystemPLC automatic control with touch screen interface
Forming MethodRotary drum vacuum adsorption continuous forming
DemoldingAutomatic pneumatic demolding system
Total Power45KW
Machine Weight4,500 kg
Raw MaterialWaste paper, recycled carton, newspaper, kraft paper scraps
Paper Consumption150-170 kg/hr
Labor Required4-5 workers
Mold Configuration3x4 rotary mold with replaceable inserts
Drying OptionsBrick conveyor belt dryer, metallic dryer, or sun drying
Operating Speed18-25 forming cycles per minute
Continuous OperationSupports 24-hour uninterrupted production

Key Advantages for the Mexican Market

  • Low-Cost Raw Materials: The machine processes waste paper, old newspapers, and discarded cartons — materials abundantly available at minimal cost in Mexico. This creates a circular economy advantage that sets Mexican producers apart from competitors relying on virgin materials or imported packaging.
  • Rapid Return on Investment: Producing 2000-2500 egg trays per hour from nearly free raw materials generates excellent margins. Mexican businesses can typically recover their equipment investment within 12-18 months of full-capacity operation.
  • Multi-Purpose Production: Interchangeable molds expand production capabilities beyond standard 30-cell egg trays. The same machine can produce egg cartons with 6, 12, or 18 cells, fruit trays for apples and pears, coffee cup holders, shoe trays, and custom industrial packaging — maximizing revenue diversification for Mexican entrepreneurs.
  • Eco-Friendly Compliance: All finished products are 100% biodegradable and compostable, meeting both local Mexican environmental regulations and international export standards. This is particularly valuable for Mexican businesses targeting EU and North American markets with sustainable packaging requirements.
  • Low Technical Barrier: The intuitive PLC touch screen control panel requires no specialized engineering background. Pulp mixing, vacuum forming, automatic demolding, and stacking are all managed automatically — Mexican operators can master the system with minimal training.

Flexible Payment and Delivery Terms

ConditionDetails
Price (FOB Qingdao)USD 16,500 per set
Minimum Order1 set
Payment TermsT/T 40% deposit plus 60% balance before delivery
Delivery TimeApproximately 65 working days after deposit received
Supply Capacity10 sets per month
Warranty12 months full machine warranty with remote technical support
PackagingExport-grade containerized shipping with moisture protection

About Jinan Wanyou Packaging Machinery Factory

Established in 2003, Wanyou has dedicated over two decades to perfecting paper pulp molding technology. Based in Jinan, Shandong, China, the factory employs 50-60 skilled technicians and exports 70-80 percent of its production to over 30 countries worldwide. Our philosophy — Quality First, Customer First, Turn Your Waste Into Money — drives every machine we build. With annual revenues of USD 1-5 million, we combine manufacturing efficiency with personalized customer service.

Mexican businesses interested in the WANYOU WY-R1 egg tray forming machine are welcome to contact Cindy at +86 15665703348 on WhatsApp or WeChat for detailed specifications, factory videos, client references, and a customized quotation for your production requirements.
