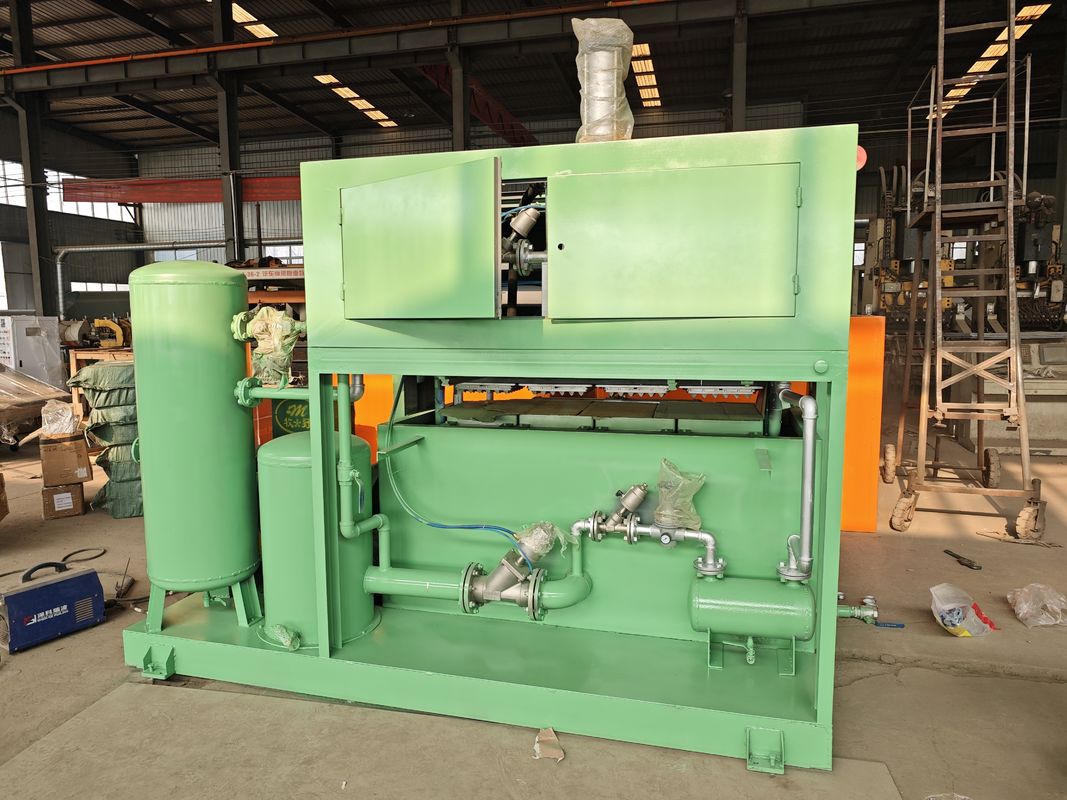

Nanya Paper Egg Tray Machine /Pulp Molding Machine Price With Aluminum Molds Simple Small Business Idea 700-1500Pcs/hh
Product Information
There are 2 models for customer to choose, semi automatic one without dryer, fully automatic one with dryer.
Main sections of the paper egg tray machine:
1. pulping system: including the hydrapulper, pump, water tank, pulp tank, mixer, etc..to make the wastepaper into paper pulp.
2. forming system: including the molding machine, molds, vacuum pumps, air compressor and electrical controller to make the pulp into wet trays.
3 molds paper egg tray machine forming part 1000pcs/h capacity
1*2 molds paper egg tray machine 700pcs/h capacity forming part
4 molds paper egg tray machine forming system 1300pcs/h capacity
3. Dryer system for egg tray machine
Metalic dryer model (4 layers, 6 layers, customized as per customer's needs) for egg tray machine
Single layer brick dryer type
Heat source (fuel) for egg tray machine dryer: natural gas, diesel, liquefied petroleum gas and other combustion liquids and gases.The transmission mode adopts industrial transmission chain to drive the net plate transmission, which runs in the drying line.
Other Various capacity machine we can make
|
Model |
Capacity |
Forming machine |
Drying system |
Workshop space |
Rated power |
|
WY-1500S |
1500-2000pcs/hr |
3molds *4faces |
Single-Layer Metal |
55m*10m*6m |
130KW |
|
Rotary type |
|||||
|
WY-1500M |
1500-2000pcs/hr |
3molds *4faces |
4 Layers |
35m*10m*6m |
120KW |
|
Rotary type |
Metal |
||||
|
WY-2000S |
2000-2500pcs/hr |
4molds *4faces |
Single-Layer Metal |
60m*10m*6m |
165KW |
|
Rotary type |
|||||
|
WY-2000M |
2000-2500pcs/hr |
4molds *4faces |
4 Layers |
40m*10m*6m |
145KW |
|
Rotary type |
Metal |
||||
|
WY-3000S |
3000pcs/hr |
3molds *8faces |
Single-Layer Metal |
65m*15m*6m |
209KW |
|
Rotary type |
|||||
|
WY-3000M |
3000pcs/hr |
3molds *8faces |
4Layers |
50m*15m*6m |
189KW |
|
Rotary type |
Metal |
||||
|
WY-4000S |
4000pcs/hr |
4molds *8faces |
Single-Layer Metal |
75m*15m*6m |
239KW |
|
Rotary type |
|||||
|
WY-4000M |
4000pcs/hr |
4molds *8faces |
4 Layers |
50m*15m*6m |
223KW |
|
Rotary type |
Metal |
||||
|
WY-5000S |
5000pcs/hr |
5molds *8faces |
Single-Layer Metal |
70m*15m*6m |
298KW |
|
Rotary type |
|||||
|
WY-5000M |
5000pcs/hr |
5molds *8faces |
4 Layers |
55m*15m*6m |
273KW |
|
Rotary type |
Metal |
||||
|
WY-6000S |
6000pcs/hr |
6molds *8faces |
Single-Layer Metal |
80m*15m*6m |
365KW |
|
Rotary type |
|||||
|
WY-6000M |
6000pcs/hr |
6molds *8faces |
4 Layers |
55m*15m*6m |
326KW |
|
Rotary type |
Metal |
1000pcs/h capacity 3 molds egg tray machine technical data
|
Egg Tray Mold Quantity |
3pcs |
|
|
Raw material |
Waste paper |
|
|
Egg tray Capacity |
1000pcs/hour |
|
|
Net weight per piece (gram) |
70g-75g |
|
|
Waste paper consumption |
75kg / hour |
|
|
Water Consumption |
0.15ton / hour |
|
|
Natural Gas Consumption of Dryer |
35cbm/h |
|
|
Worker requirement |
4-6workers |
|
|
Machine Length |
7m-25m |
|
|
Machine weight |
8-20tons |
|
|
Power Requirement |
Without dryer |
40KW |
|
With dryer |
60KW |
|
|
Area of workshop |
Without dryer |
More than 120 M² |
|
With dryer, dryer-16m |
More than300M² |
|
|
Container Requirement |
Without dryer |
40ft*1 |
|
With dryer |
40ft*3 |
|
|
Remarks: 1. The egg tray Capacity calculated base on 30-packed egg tray(size 300x300mm, weight 70g~75g). 2. Workshop size is for reference only and could be adjusted according to actual size of client’s plant. |
||
Payment Terms
|
Delivery Time: 40 working days after getting payment Payment Terms: 40% T/T prepayment in advance. 60% before delivery by T/T. |
|
|
Warranty time |
1year after the Egg tray machine received. |
|
Terms of delivery |
EXW Jinan, China |
|
Time of payment |
When the deposit is paid, the machine will begin to be produced. And the balance should be paid by the consignee (the buyer) before the delivery. |
