Enviroment Friendly Eggs Packaging Paper Egg Tray Machine / Pulp Molding Equipment /Egg Tray Production Line With PLC Control
Product Information

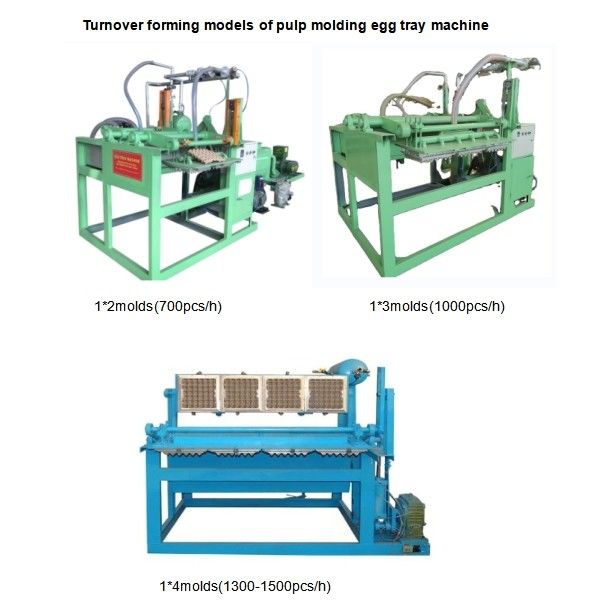

It has semi automatic and fully automatic 2 types egg tray machine.
Main sections of the paper egg tray machine:
1. pulping system: including the hydrapulper, pump, water tank, pulp tank, mixer, etc..to make the wastepaper into paper pulp.
2. forming system: including the molding machine, molds, vacuum pumps, air compressor and electrical controller to make the pulp into wet trays.

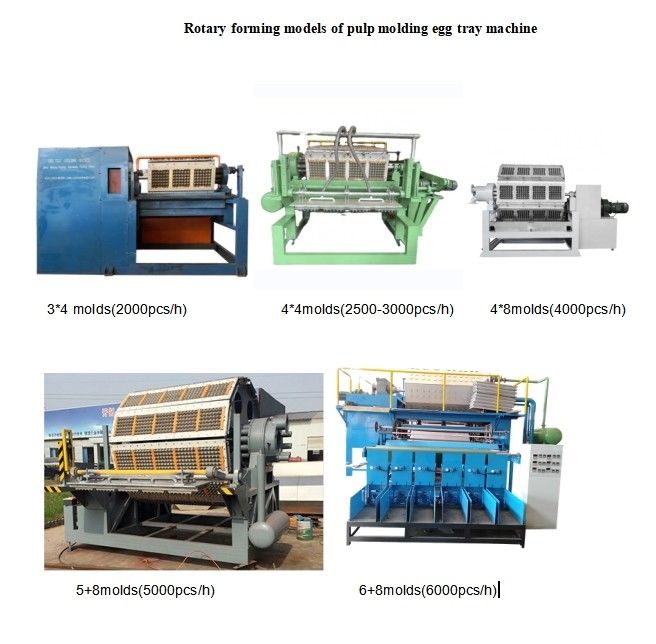

3*4 molds paper egg tray machine 2000pcs/h capacity
4*4 molds paper egg tray machine forming part

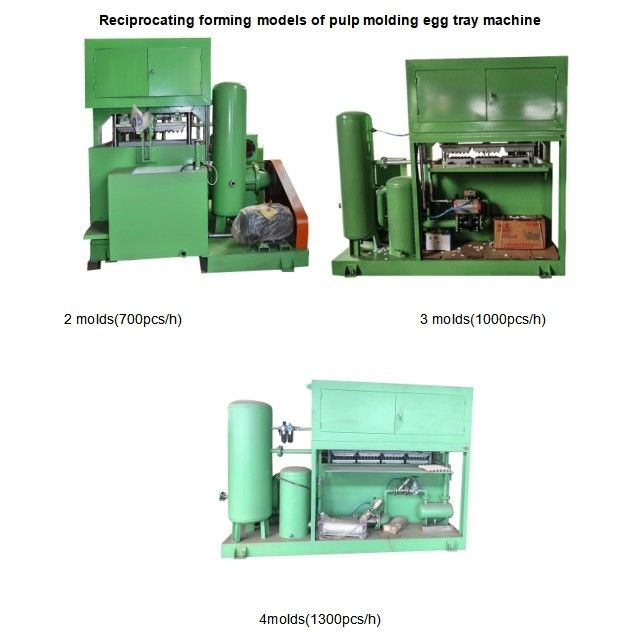

4 molds egg tray machine 1300pcs/h capacity forming part
transferring molds of paper egg tray machine 5000pcs/h capacity
3. Drying System
including the oven, chains, trays, heating pipes, fans, boiler, etc..to dry the wet trays so they can be used directly.(This part is not necessary for small capacity demand machine below 1500pcs/h.)
Heat source: natural gas, diesel, liquefied petroleum gas and other combustion liquids and gases.The transmission mode adopts industrial transmission chain to drive the net plate transmission, which runs in the drying line.

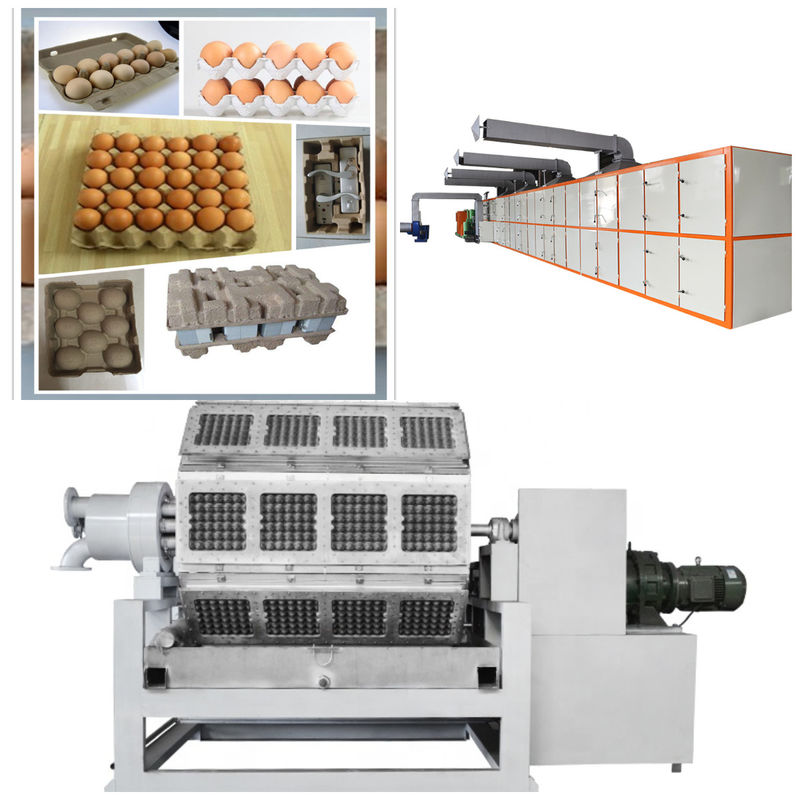

4 and 6 layers metallic dryer oven for paper egg tray machine / egg tray production line
Other Various capacity machine we can make
|
Egg Tray Mold Quantity |
2pcs |
3pcs |
4pcs |
12pcs(3pcs*4) |
16pcs(4pcs*4) |
24pcs(3pcs*8) |
32pcs(4pcs*8) |
|
|
Raw material |
Waste paper |
Waste paper |
Waste paper |
Waste paper |
Waste paper |
Waste paper |
Waste paper |
|
|
Egg tray Capacity(pcs/hour) |
700 |
1000 |
1300 |
2000 |
2500 |
3000 |
4000 |
|
|
Net weight per piece (gram) |
70-75 |
70-75 |
70-75 |
70-75 |
70-75 |
70-75 |
70-75 |
|
|
Waste paper consumption |
0.06ton / h |
0.1ton / h |
0.13ton / h |
150kg/ h |
150kg/h |
188kg/h |
225kg / hour |
|
|
Water Consumption |
0.15ton/h |
0.22ton / h |
0.3ton / h |
0.45ton / h |
0.6ton/h |
0.68ton/h |
0.9ton / h |
|
|
Natural Gas Consumption of Dryer |
25cbm/h |
45cbm/h |
60cbm/h |
75cbm/h |
90cbm/h |
110cbm/h |
120cbm/h |
|
|
Boiler model (natural gas fuel Kcal) |
300*103 |
450* |
600*103 |
800*103 |
1000*103 |
1200*103 |
1500*103 |
|
|
Worker requirement |
3-4workers |
4-6workers |
4-6workers |
5-7workers |
5-7workers |
8-10workers |
8-10workers |
|
|
Power Requirement |
Without dryer |
30KW |
40KW |
45KW |
70KW |
80KW |
100KW |
100KW |
|
With dryer |
45KW |
60KW |
65KW |
100KW |
120KW |
130KW |
150KW |
|
|
Area of workshop |
Without dryer |
More than 100 M² |
More than 120 M² |
More than 150 M² |
More than |
More than 200 M² |
More than 250 M² |
More than 250 M² |
|
With dryer |
More than 240M² |
More than300M² |
More than 320 M² |
More than 400M² |
More than 400M² |
More than 520M² dryer30M |
More than 520M² |
|
|
Container Requirement |
Without dryer |
20ft*1 |
40ft*1 |
40ft*1 |
40ft*1 |
40ft*1 |
40ft*1 |
40ft*1 |
|
With dryer |
40ft*2+20ft*1 |
40ft*3 |
40ft*3 |
40ft*4 |
40ft*4 |
40ft*5 |
40ft*5 |
|
|
Remarks: |
||||||||
2000pcs/h capacity 3*4 molds egg tray machine technical data
|
Egg Tray Mold Quantity |
12pcs(3pcs*4 faces) |
|
|
Raw material |
Waste paper |
|
|
Egg tray Capacity |
2000pcs/hour |
|
|
Net weight per piece (gram) |
70g-75g |
|
|
Waste paper consumption |
115-150kg / hour |
|
|
Water Consumption |
0.45-0.5ton / hour |
|
|
Natural Gas Consumption of Dryer |
50-75cbm/h |
|
|
Worker requirement |
5-7workers |
|
|
Machine Length |
8m-32m |
|
|
Machine weight |
8-32tons |
|
|
Power Requirement |
Without dryer |
70KW |
|
With dryer |
100KW |
|
|
Area of workshop |
Without dryer |
More than 200 M² |
|
With dryer, dryer-20m |
More than400M² |
|
|
Container Requirement |
Without dryer |
20ft*1 |
|
With dryer |
40hq*2+20ft*1 |
|
|
Remarks: 1. The egg tray Capacity calculated base on 30-packed egg tray(size 300x300mm, weight 70g~75g). 2. Workshop size is for reference only and could be adjusted according to actual size of client’s plant. |
||
Payment Terms
|
Delivery Time: 55 working days after getting payment Payment Terms: 40% T/T prepayment in advance. 60% before delivery by T/T. |
|
|
Warranty time |
1year after the Egg tray machine received. |
|
Terms of delivery |
EXW Jinan, China |
|
Time of payment |
When the deposit is paid, the machine will begin to be produced. And the balance should be paid by the consignee (the buyer) before the delivery. |
