Full Automatic Paper Egg Tray Machine Paper Pulp Molding Machine Customized Molds
Product Introduction
Pulp Moulding Machine/ Egg Tray Machine production line, which uses waste paper, cardboard, leftover material of paper mill, by hydraulic pulper, mix making a certain dense pulp, and pulp is absorbed by vacuum of special metal moulding to become wet products, through drying and shaping to become finished products.
Pulp Moulding Line from Leading Machinery processing makes use of recycled water and does not lead to water or air pollution.Finished packaging products can be recycled after being used in storage, transport, and sales. Aftershredding, they are easy to be decomposed aspaper, even if discarded into the natural environment.
Techinical Parameters of 4*4 molds 2500-3000pcs/h capacity egg tray machine/production line
|
Egg Tray Mold Quantity |
16pcs(4pcs*4 faces) |
|
|
Raw material |
Waste paper |
|
|
Egg tray Capacity |
2500pcs/hour |
|
|
Net weight per piece (gram) |
70g-75g |
|
|
Waste paper consumption |
190kg / hour |
|
|
Water Consumption |
0.6ton / hour |
|
|
Natural Gas Consumption of Dryer |
90cbm/h |
|
|
Worker requirement |
5-7workers |
|
|
Machine Length |
8m-33m |
|
|
Machine weight |
9-32tons |
|
|
Power Requirement |
Without dryer |
80KW |
|
With dryer |
120KW |
|
|
Area of workshop |
Without dryer |
More than 200 M² |
|
With dryer, dryer-24m |
More than400M² |
|
|
Container Requirement |
Without dryer |
20ft*1 |
|
With dryer |
40hq*3 |
|
|
Remarks: 1. The egg tray Capacity calculated base on 30-packed egg tray(size 300x300mm, weight 70g~75g). 2. Workshop size is for reference only and could be adjusted according to actual size of client’s plant. |
||

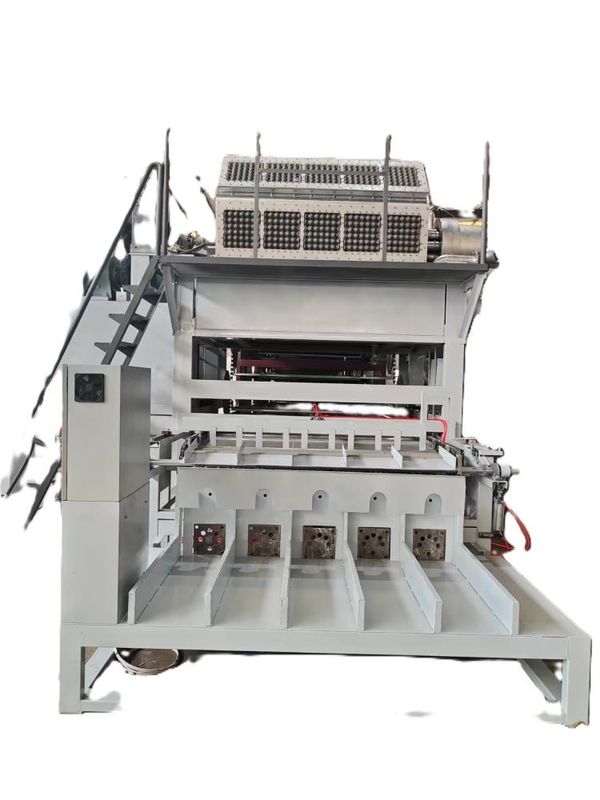

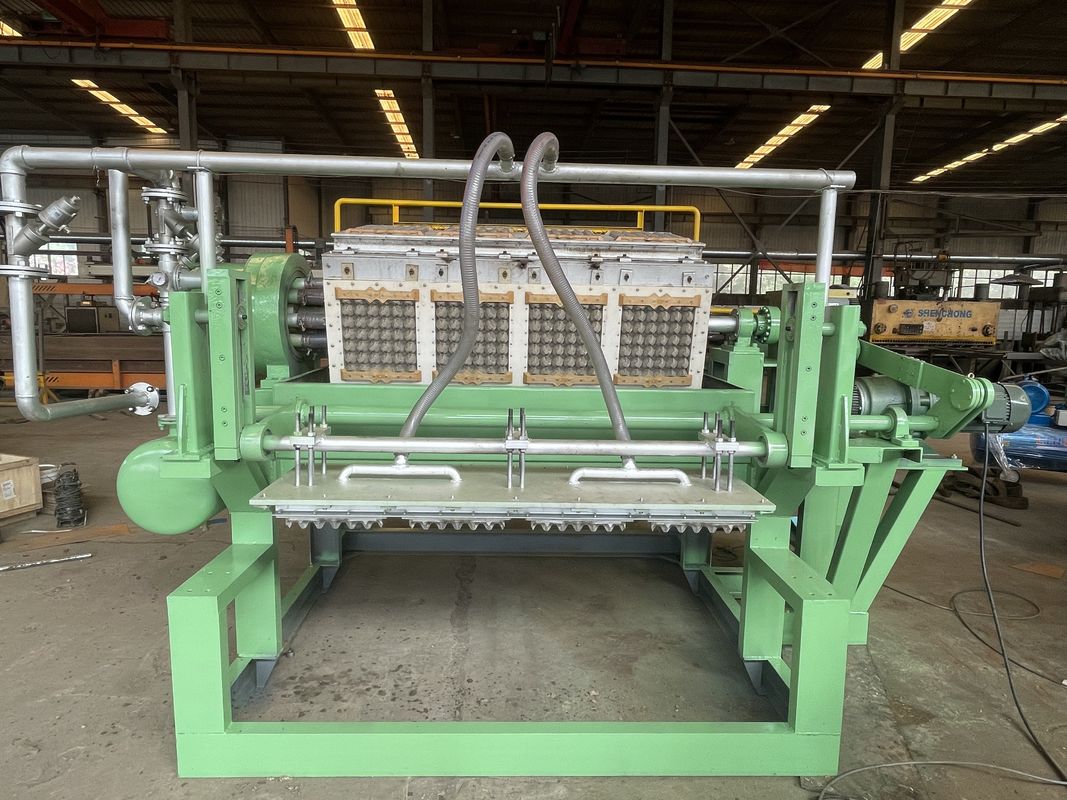

Pulp Forming Machine
Dryer system of egg tray machine:
dryer boiler of the egg tray machine should use fuel like natural gas, diesel, coal, wood, LPG. Customer must choose one fuel to get correct buying cost of the whole setting up machine.
Some world famous brands of the fittings:
1. the cylinder’s brand—FESTO
2. the electromagnetic valve’s brand—SHAKO
3. the pneumatic ball valve’s brand—SUPU
4. all the pump and motor are using famous brand of China.
5. the electric appliance’s brand—CHINT
6. the computer controller(PLC)--DELTA
7. the burner-- BALTUR/RIELLO
Advantages of our machine:
1). Controlled by automatic computer soft ware
2). No need for infrastructure construction, machine can start running only after connecting some pipes, power and water, and preparing the material
3). Some parts are Germany brand or other famous brand
4). Our egg tray machine can make different trays at same time by using different moulds
5). Besides egg tray, fruit trays, our machine also can produce industrial package
6). All installation and debugging work will be done before shipment.
7). 20 years' experience on egg tray machine
