起源の場所:
津南,山東,中国
ブランド名:
WANYOU
モデル番号:
MQJ
| Attribute | Value |
|---|---|
| Voltage | 380V/50HZ |
| Warranty | 1 year |
| After sale Service | Engineers available to overseas installation |
| Product Type | Egg Tray Machine |
| Raw material | Waste Paper |
| Keyword | egg tray machine, egg tray production line, egg carton machine |

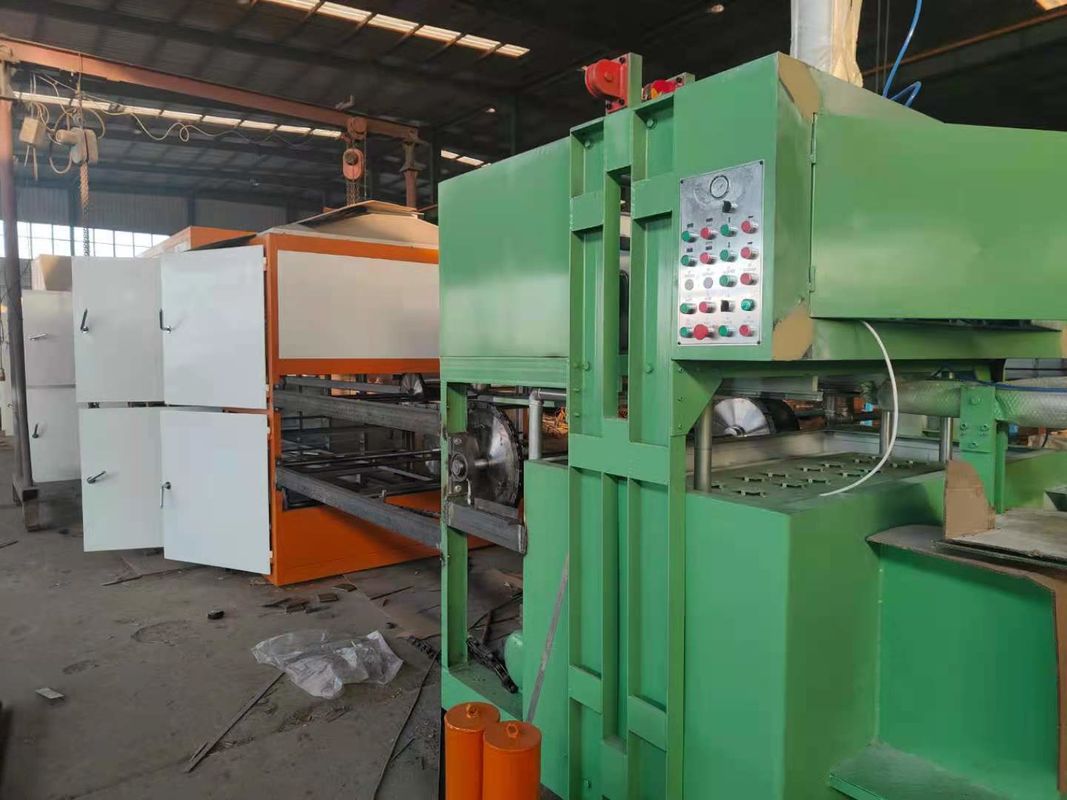

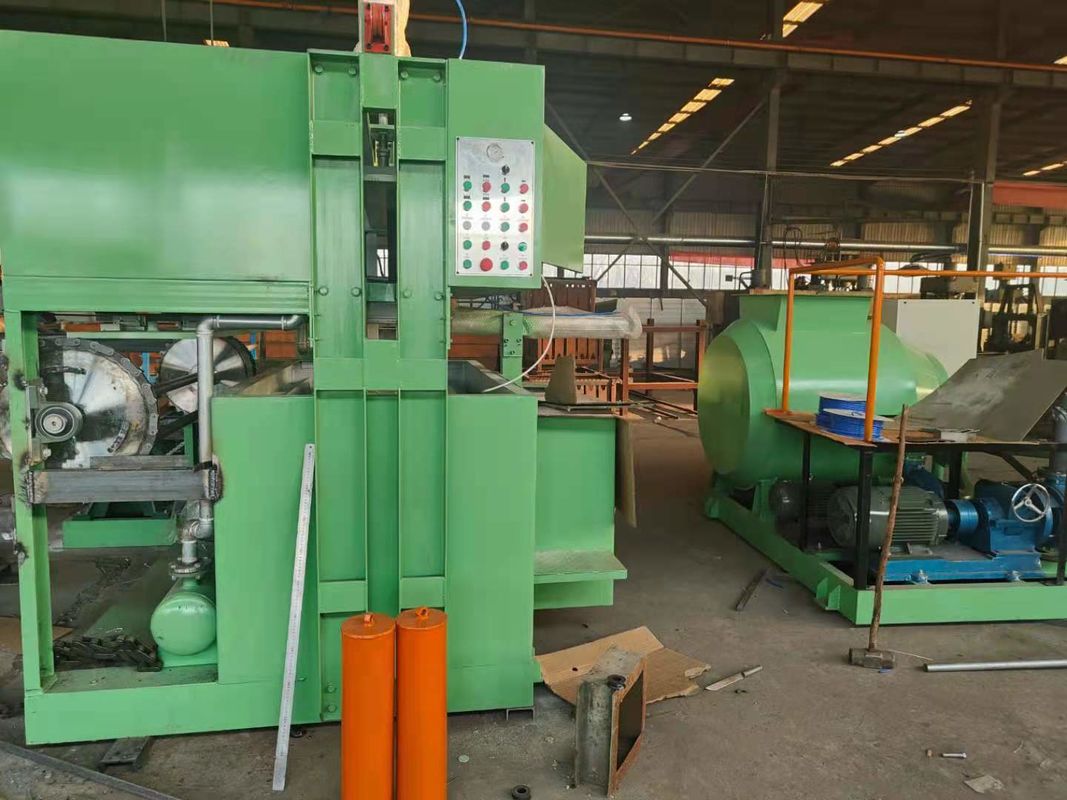

The Paper Egg Tray Machine includes pulp making system, forming system and drying system.
Heat source: natural gas, diesel, liquefied petroleum gas and other combustion liquids and gases. The transmission mode adopts industrial transmission chain to drive the net plate transmission, which runs in the drying line.
| Parameter | Value | Notes |
|---|---|---|
| Egg Tray mould quantity | 3pcs | Container Required |
| Raw material | Waste paper | About 40ft*1(without dryer) |
| Output for egg tray | 1000pcs/hour | |
| Net weight per piece (gram) | 70g-75g | |
| The volume of waste paper consumed | 0.075ton / hour | |
| The volume of water consumed | 0.22ton / hour | |
| The natural gas consumption of the dryer(about) | 45cbm/h | |
| Machine Weight | 8tons | |
| Egg tray Size | 295mm*295mm 30eggs |
Remark: 1. Usually, all installation and debugging work will be done before shipment. 2. If the buyer wants to Install the debugging term, the seller will arrange one people instructs the installment (all travel ticket and hotel charge by buyer and engineer charge USD100/day)
| Main parts | Quantity | Picture |
|---|---|---|
|
Pulping system Including: mill pulp pump -1set, water pump-2sets, pulp pump -2sets, 1M³ pulping machine -1sets |
1set | |
|

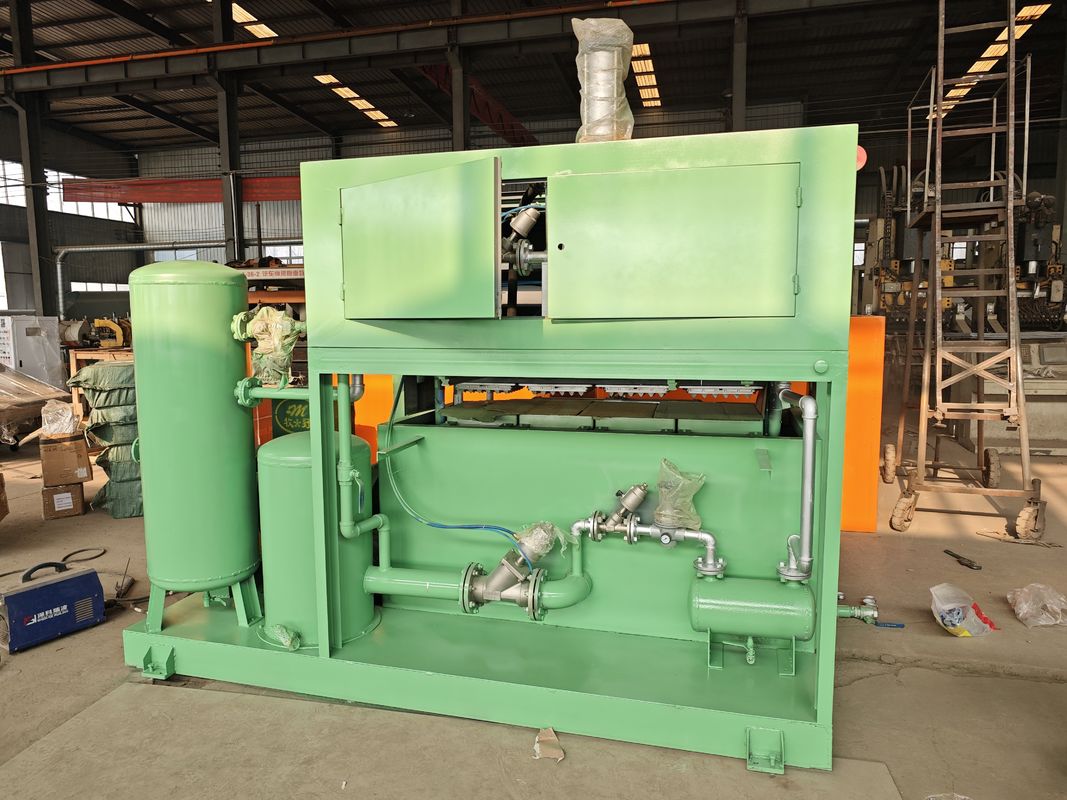

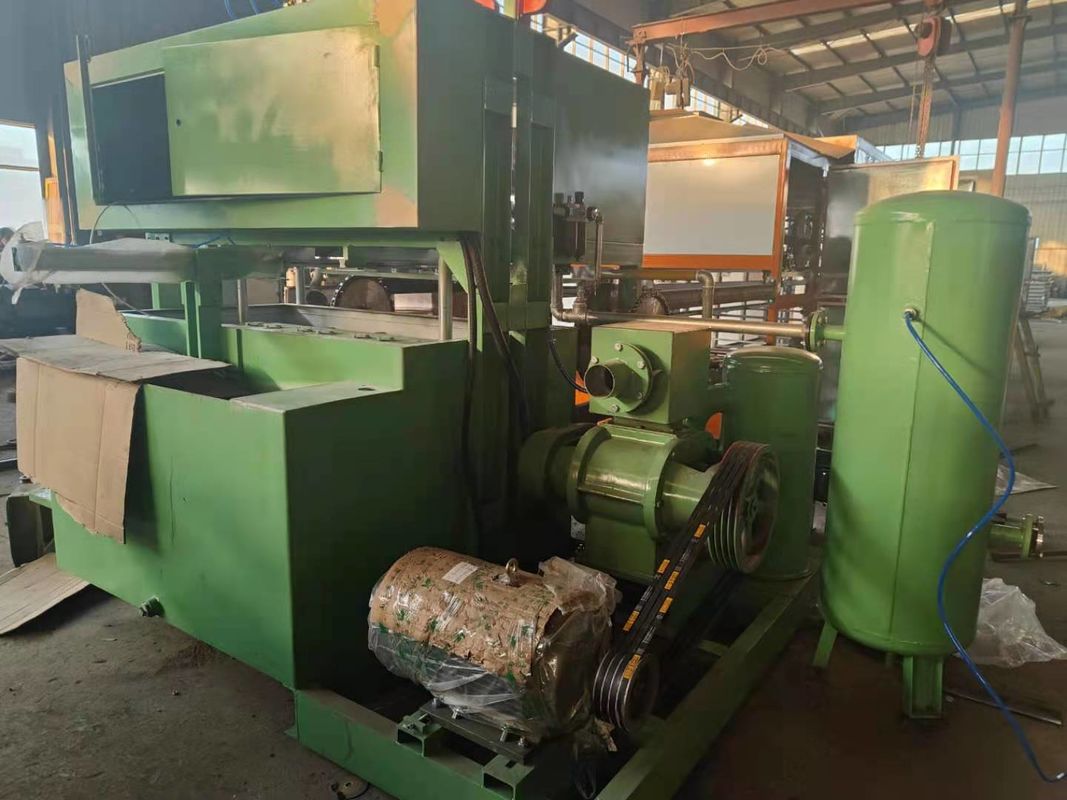

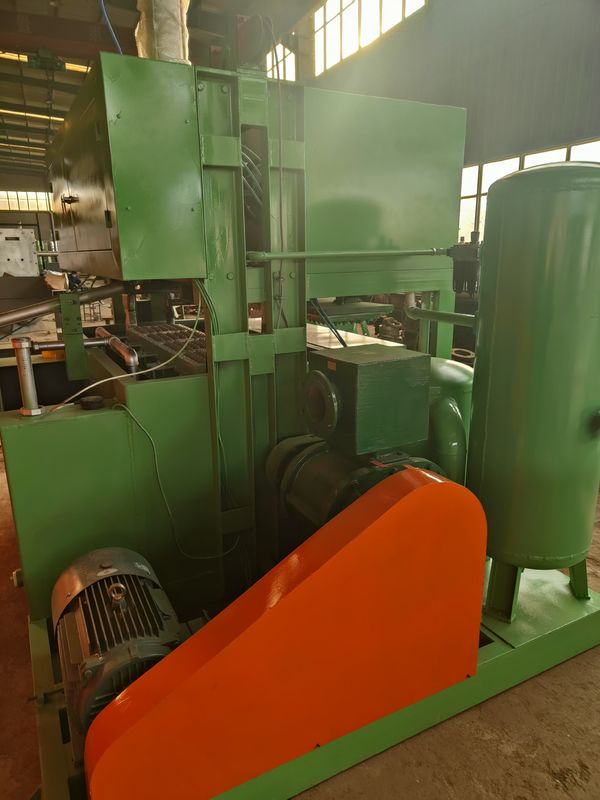

Forming system Including: 3 moulds forming machine -1set, Vacuum pump-1set, Compressor -1set, Washer -1set, Vacuum tank-1pcs, Air tank --1pcs |
1set | |
The warranty period: 1 year Guarantee for the maintenance and repairment of the forming machine exclude the parts of quick-wear. The spare parts will be provided according to the client requirement.
